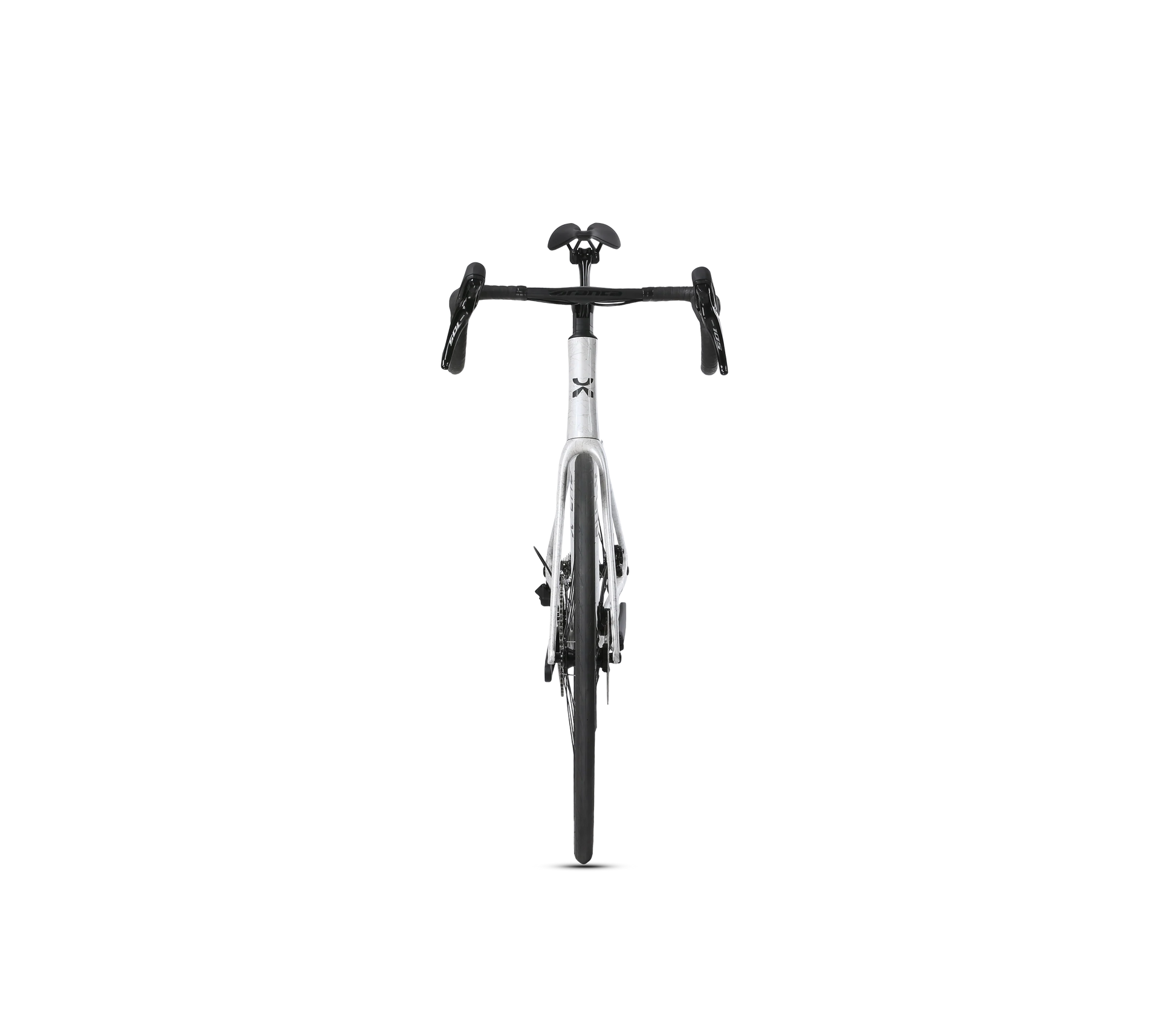

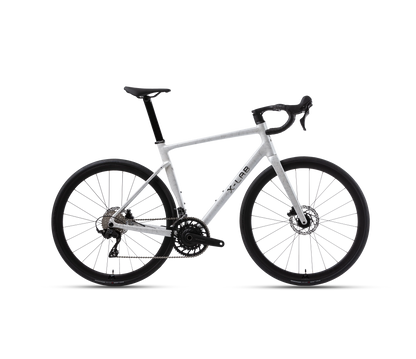

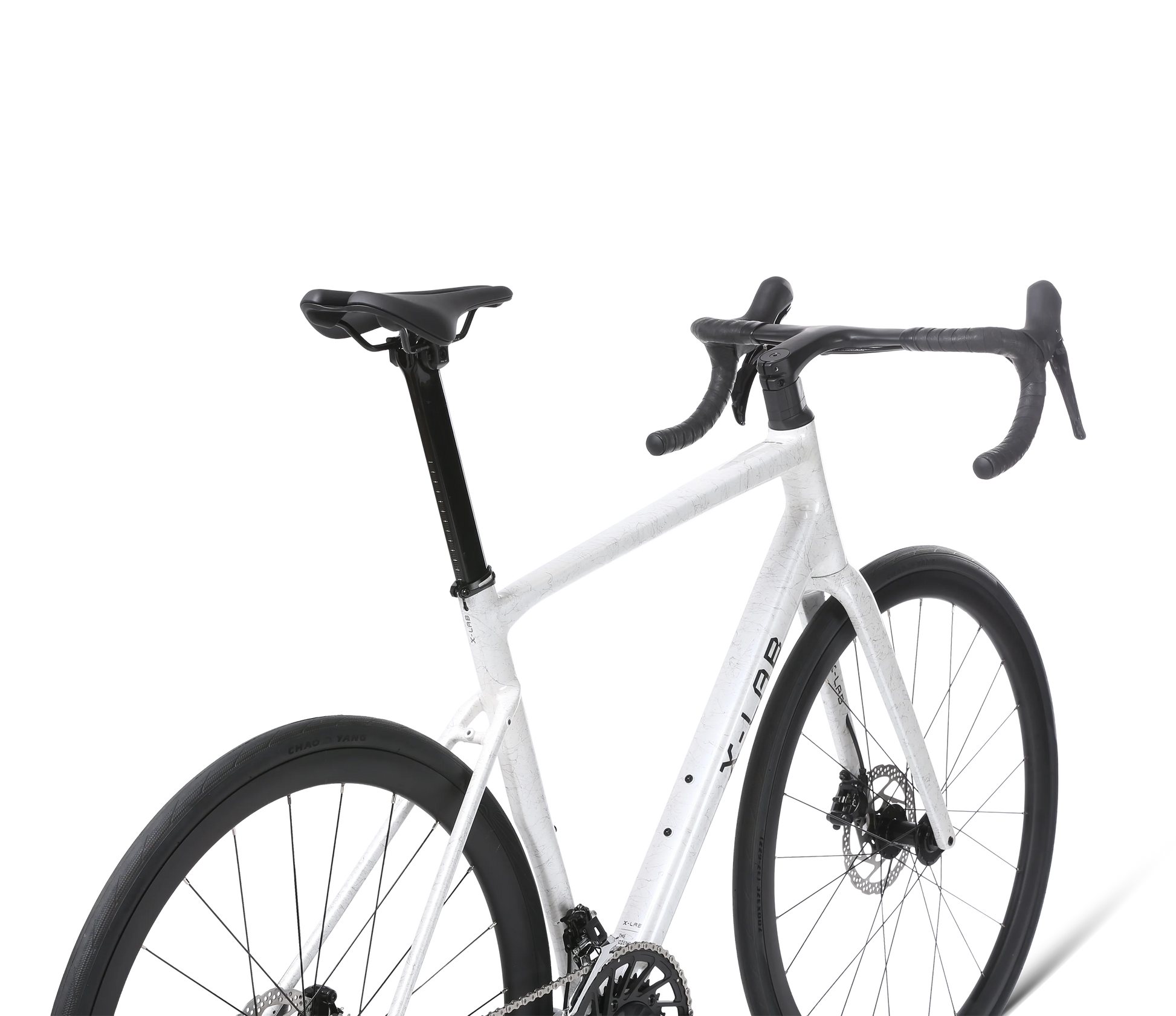

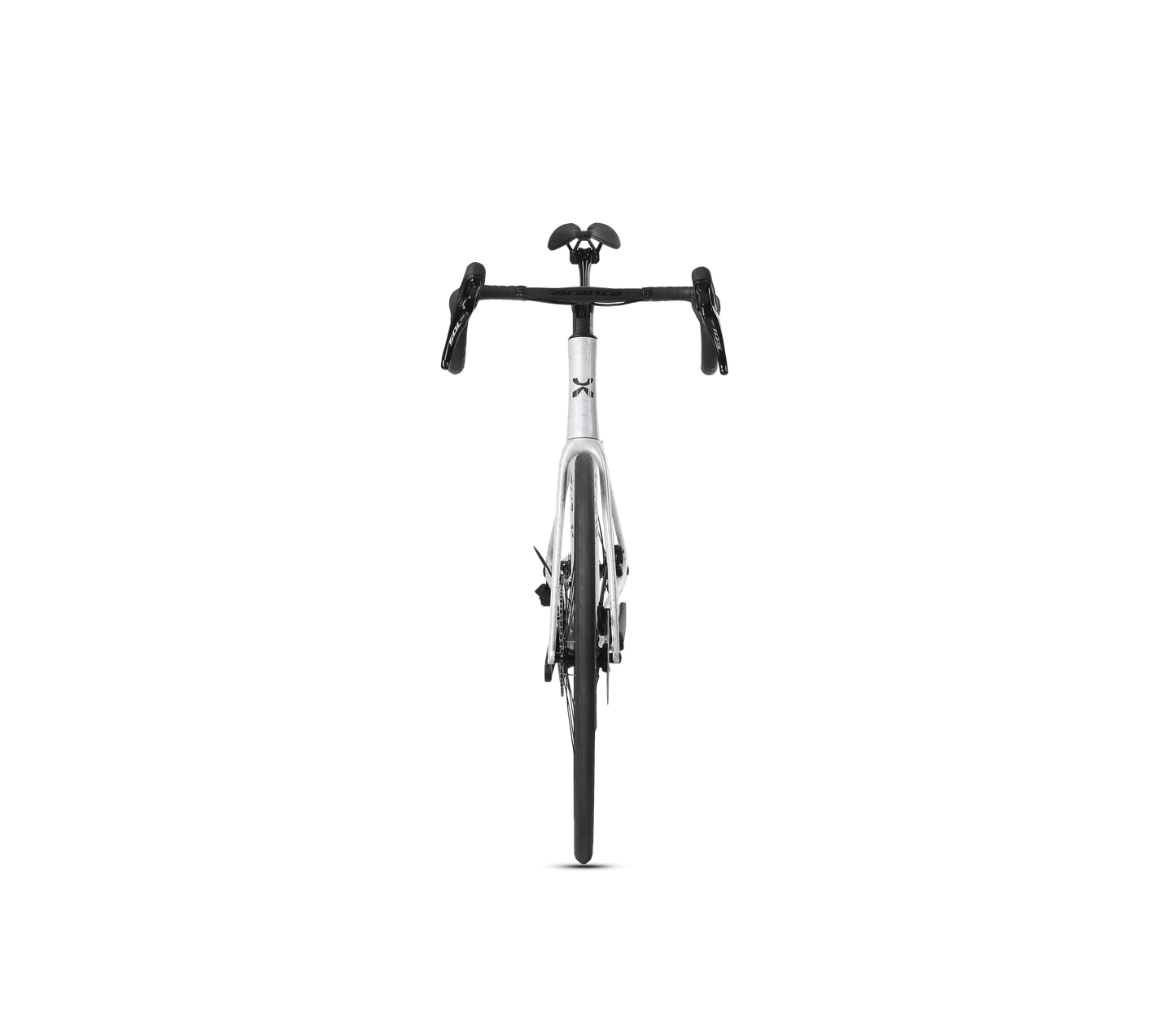

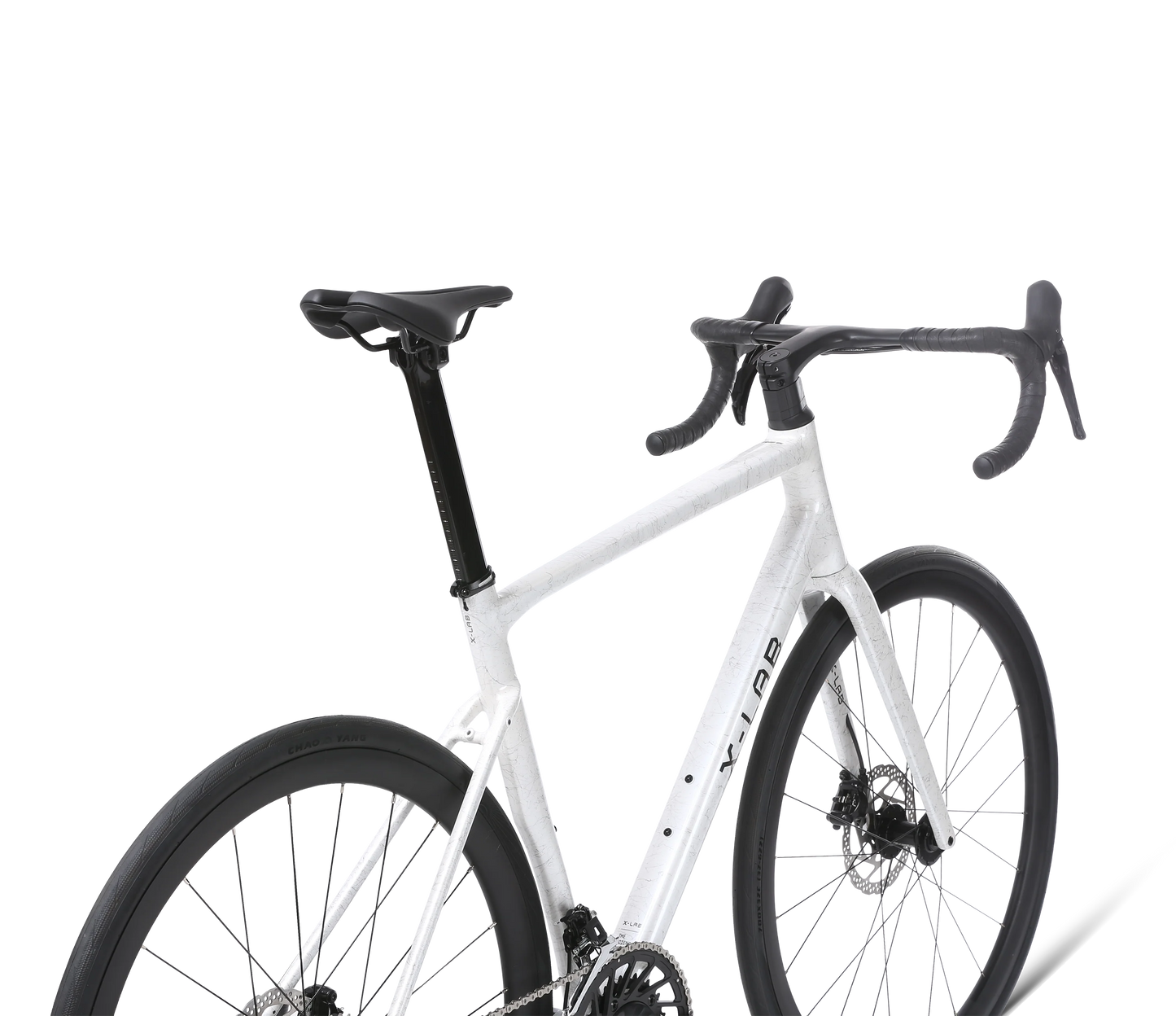

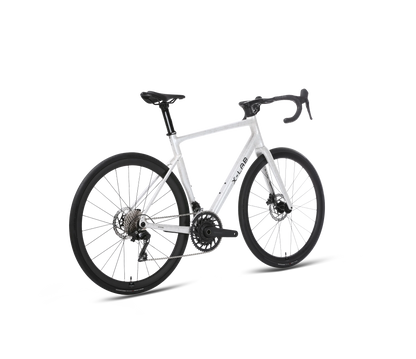

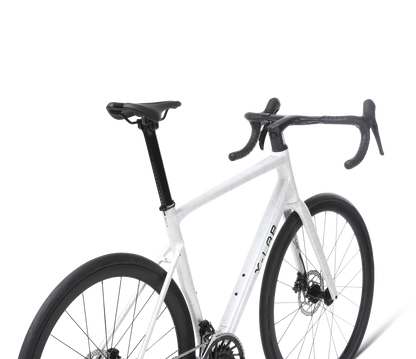

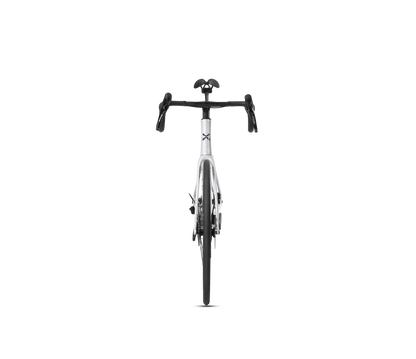

XDS X-Lab RS5

XDS X-Lab RS5

$1,399.99 USD
$1,399.99 USD
Sale Sold out
Color: Wavebreaker White
Size

The RS5 delivers the X-LAB riding experience in a versatile and approachable form.

Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort.

Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding.

  • Technical Specifications

    FRAME

    XDS X6 Alloy Frame, UDH Compatible

    FORK

    XDS Carbon Fork, 100x12mm Thru-axle

    HANDLEBAR / STEM

    Branta Alloy Integrated

    SEATPOST

    XDS Carbon Seatpost, Aero Profile

    REAR DERAILLEUR

    Shimano 105 RD-R7100

    FRONT DERAILLEUR

    Shimano 105 FD-R7100

    SHIFTERS

    Shimano 105 ST-R7120

    BRAKES

    Shimano 105 BR-R7170

    CASSETTE

    CS-R9012, 12-Speed, 11-34T

    CRANKSET

    Branta Alloy Power Meter Crankset, 52-36T,

    24mm Steel Spindle, Apply Find My Anti-Theft Technology

    BOTTOM BRACKET

    BSA 24mm

    ROTORS

    Shimano SM-RT56-S, F:160 R:160mm

    CHAIN

    SUMC SX12

    WHEELSET

    Branta A35 SL, Alloy Rims

    TIRES

    Branta R332, 700x32C, 60TPI

    SADDLE

    Branta R302, Steel Rails

    WEIGHT

    9.54 kg / 21.03 lbs (Size L)

    SIZE OPTIONS

    XS / S / M / L / XL
