Trek

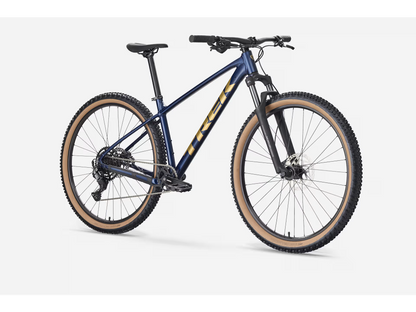

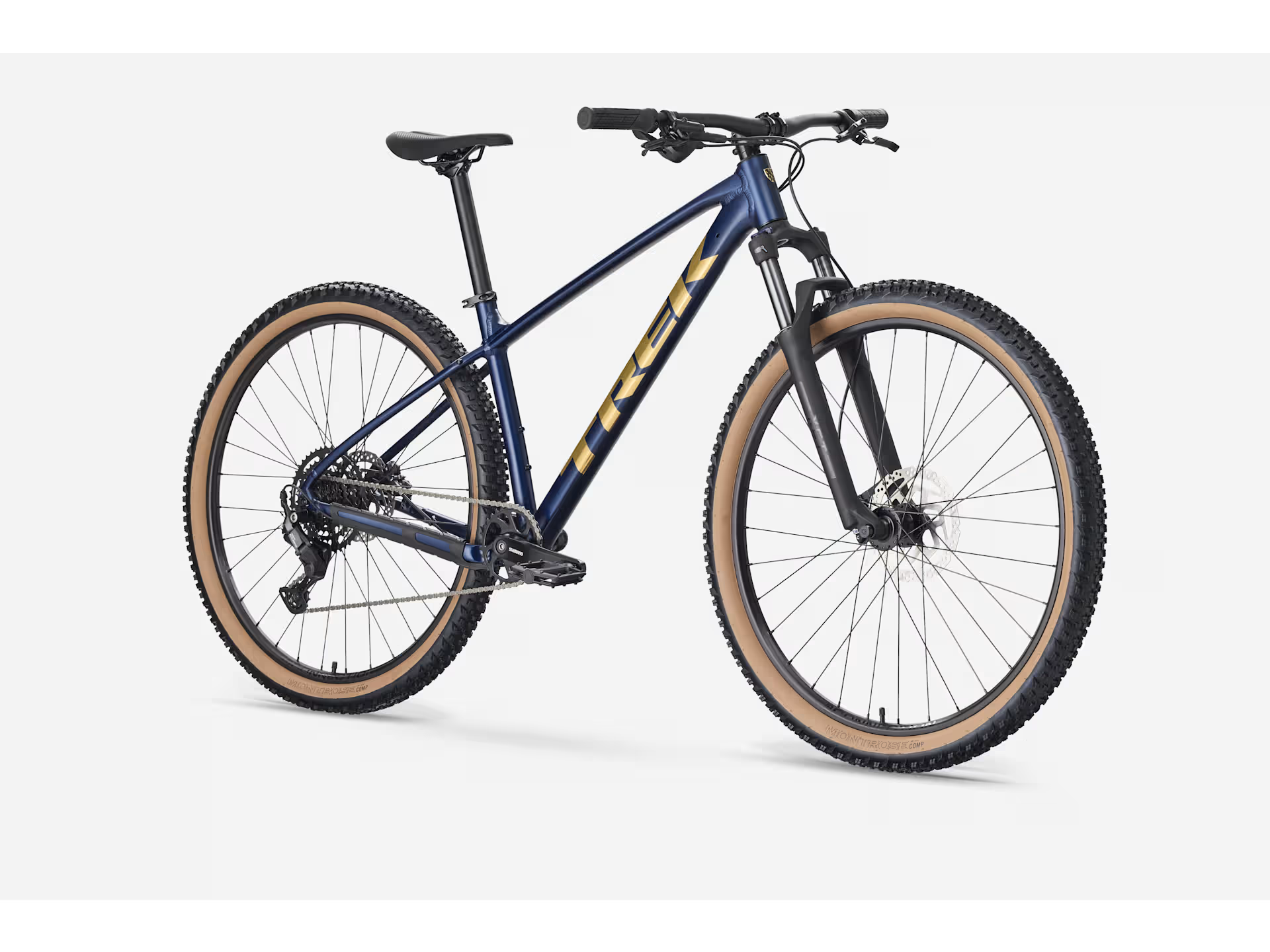

Trek Marlin 5 (26)

$849.99 USD

Sale Sold out

Color: Mulsanne Blue

Size X-Small 27.5 Small 27.5 Medium 29 Medium\Large 29 Large 29 X-Large 29 XX-Large 29

Quantity

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

*Frame: Size: XS

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Size: S , M , ML , L , XL , XXL

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork: Size: XS

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 80 mm travel

Size: S

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel

Size: M , ML , L , XL , XXL

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29'' wheel, 100 mm QR, 100 mm travel

Hub front: Formula DC-20, alloy, 6-bolt, 100x5mm
Skewer front: Trek Thru-Skew
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear: 173x5mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes: 14g stainless steel, black
*Tire: Size: XS , S

Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''

Size: M , ML , L , XL , XXL

Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

Shifter: Shimano U4000, 9 speed
Rear derailleur: Shimano CUES U4000
*Crank: Size: XS , S , M , ML

Shimano CUES U4001, 32T, 52mm chainline, 170mm length

Size: L , XL , XXL

Shimano CUES U4001, 32T, 52mm chainline, 175mm length
Bottom bracket: Shimano, 73mm, threaded cartridge, 122.5mm spindle
Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain: Shimano LG500, 9/10/11 speed
Pedal: VP-536 nylon platform

Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost: Size: XS , S , M

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: ML , L , XL , XXL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar: Size: XS

Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Size: S

Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , ML , L , XL , XXL

Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Trek Line Comp, nylon lock-on
*Stem: Size: XS , S

Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset: Semi-integrated, 1-1/8''
Brake: Shimano MT200 hydraulic disc
*Brake rotor: Size: XS , S , M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 160mm

Size: M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 180mm
Brake Set: Shimano MT200 hydraulic disc
