Trek

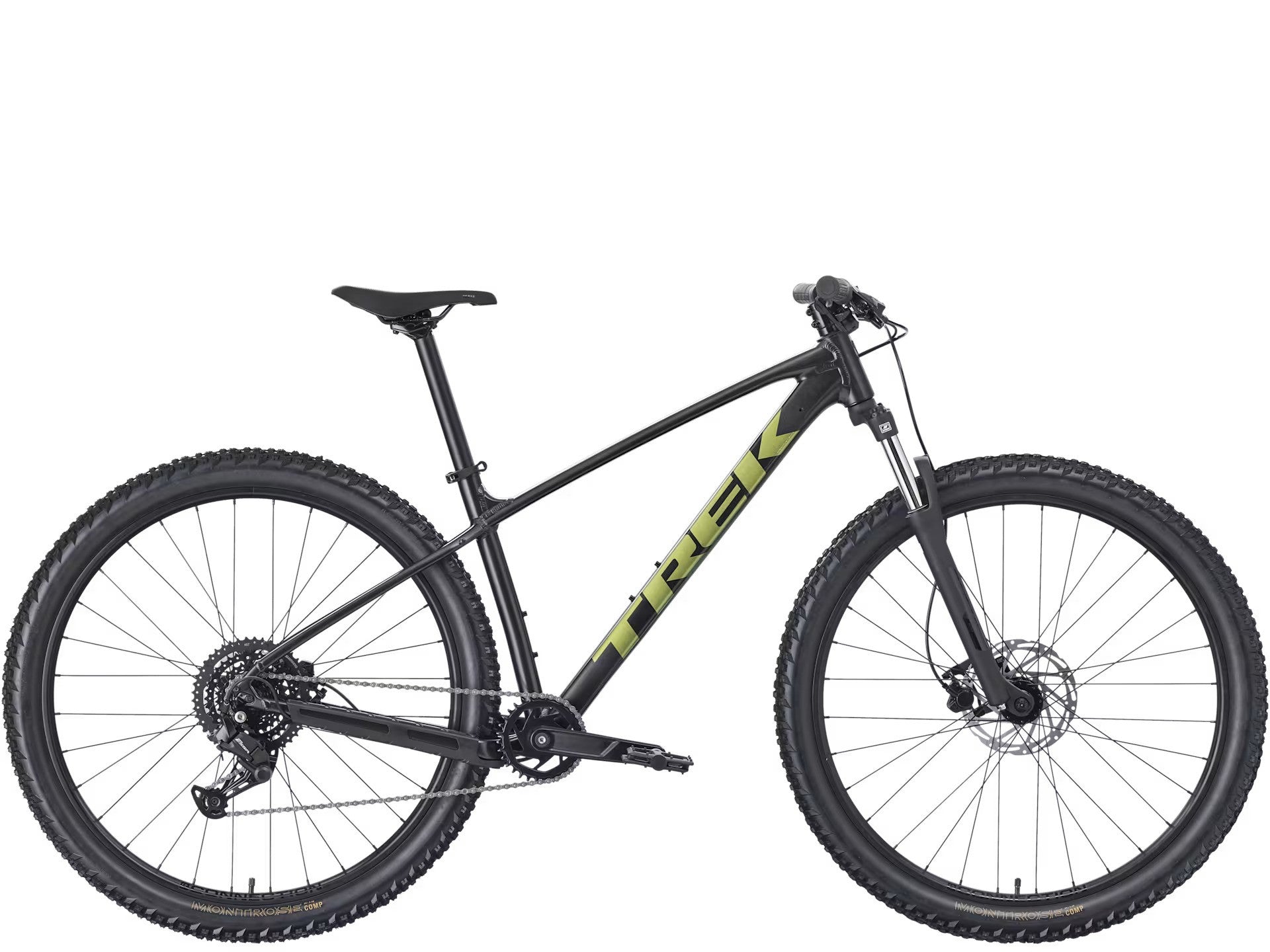

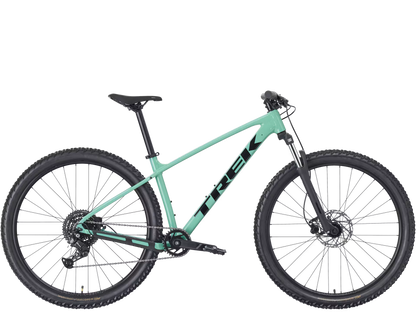

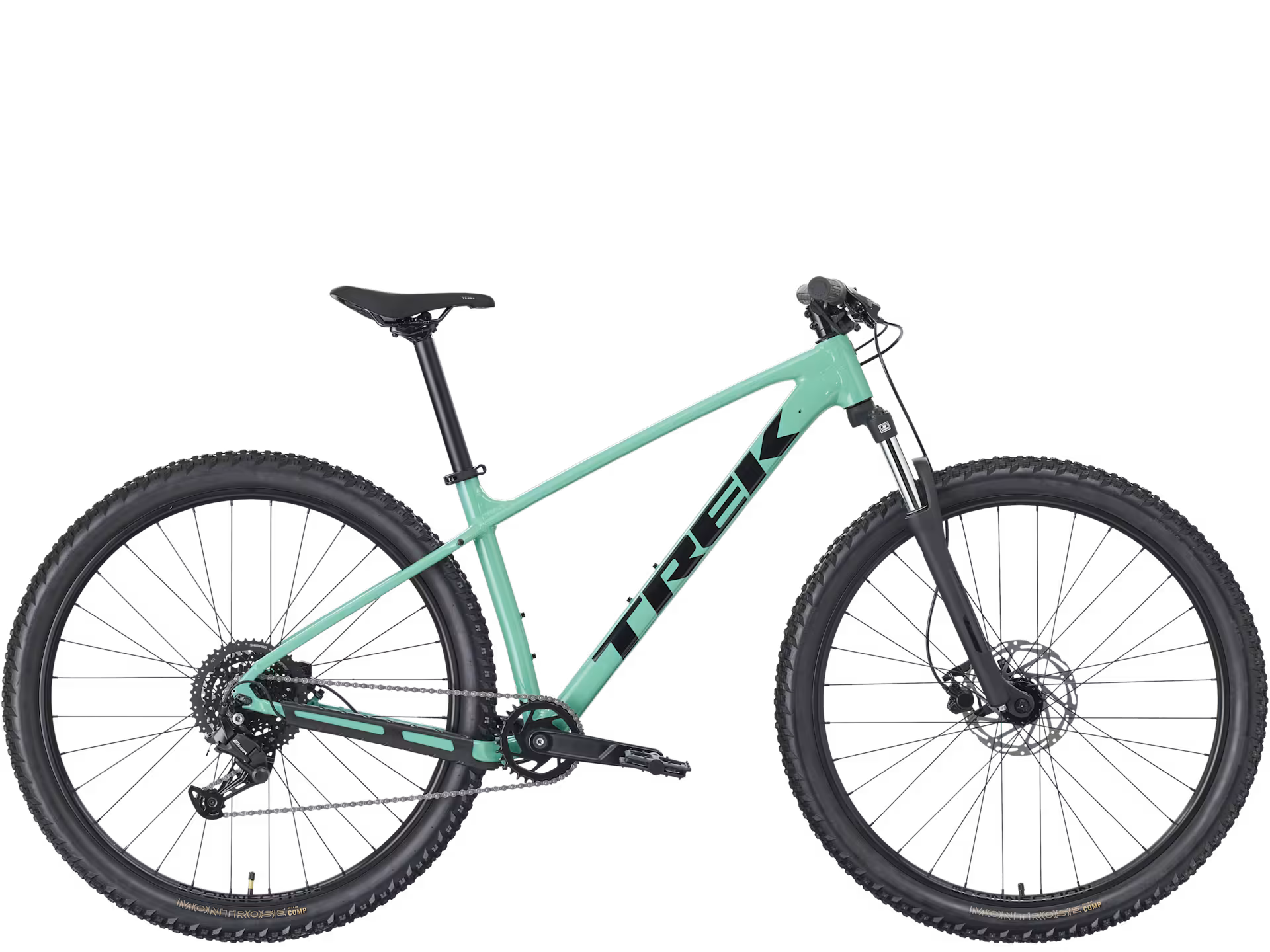

Trek Marlin 4

Trek Marlin 4

Regular price $599.99 USD
Regular price Sale price $599.99 USD
Sale Sold out
Color: Matte Dark Web
Size

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.



Specifications
*Frame Size: XXS , XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: ML , M , L , S , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork Size: XXS
SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travel
Size: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: ML , M , L , XL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Wheels
Specifications
*Front Hub Size: ML , M , XXS , XS , L , S , XL
Formula DC-20, alloy, 6-bolt, 5x100mm QR
*Rear Hub Size: ML , M , XXS , XS , L , S , XL
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
*Rear Skewer Size: ML , M , XXS , XS , L , S , XL173x5mm QR
*Rim Size: ML , M , XXS , XS , L , S , XL
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
*Tire Size: XXS
Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40''
Size: ML , M , L , XL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40''
Drivetrain
Specifications
*Shifter Size: ML , M , XXS , XS , L , S , XL
Shimano M315, 8 speed
*Rear Derailleur Size: ML , M , XXS , XS , L , S , XL
Shimano ESSA U2000
*Crank Size: XXS , XS
ProWheel alloy, 32T narrow-wide steel ring, 160mm length
Size: ML , M , S
ProWheel alloy, 32T narrow-wide steel ring, 170mm length
Size: L , XL
ProWheel alloy, 32T narrow-wide steel ring, 175mm length
*Cassette Size: ML , M , XXS , XS , L , S , XL
Shimano HG300, 11-45, 8 speed
*Chain Size: ML , M , XXS , XS , L , S , XL
KMC Z8.3, 8 speed
*Pedal Size: ML , M , XXS , XS , L , S , XL
nylon platform
Components
Specifications
*Saddle Size: ML , M , XXS , XS , L , S , XLBontrager Verse Short, stainless steel rails
*Seatpost Size: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: M , XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: ML , M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
*Grips Size: ML , M , XXS , XS , L , S , XLTrek Line Comp, nylon lock-on
*Stem Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: ML , M , LBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XLBontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
*Headset Size: ML , M , XXS , XS , L , S , XL
Semi-integrated, 1-1/8''
*Brake Size: XXS , XS , S
Tektro HD-M276 hydraulic disc
Size: ML , M , L , XL
Tektro HD-M275 hydraulic disc
*Brake Rotor Size: ML , M , XXS , XS , L , S , XL
Tektro, 6-bolt, 160mm
Size: ML , M , L , XL
Tektro, 6-bolt, 180mm
Weight
Specifications
Weight M - 14.90 kg / 32.85 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
