Trek Madone SL 6 AXS Gen 8
Trek Madone SL 6 AXS Gen 8
Couldn't load pickup availability

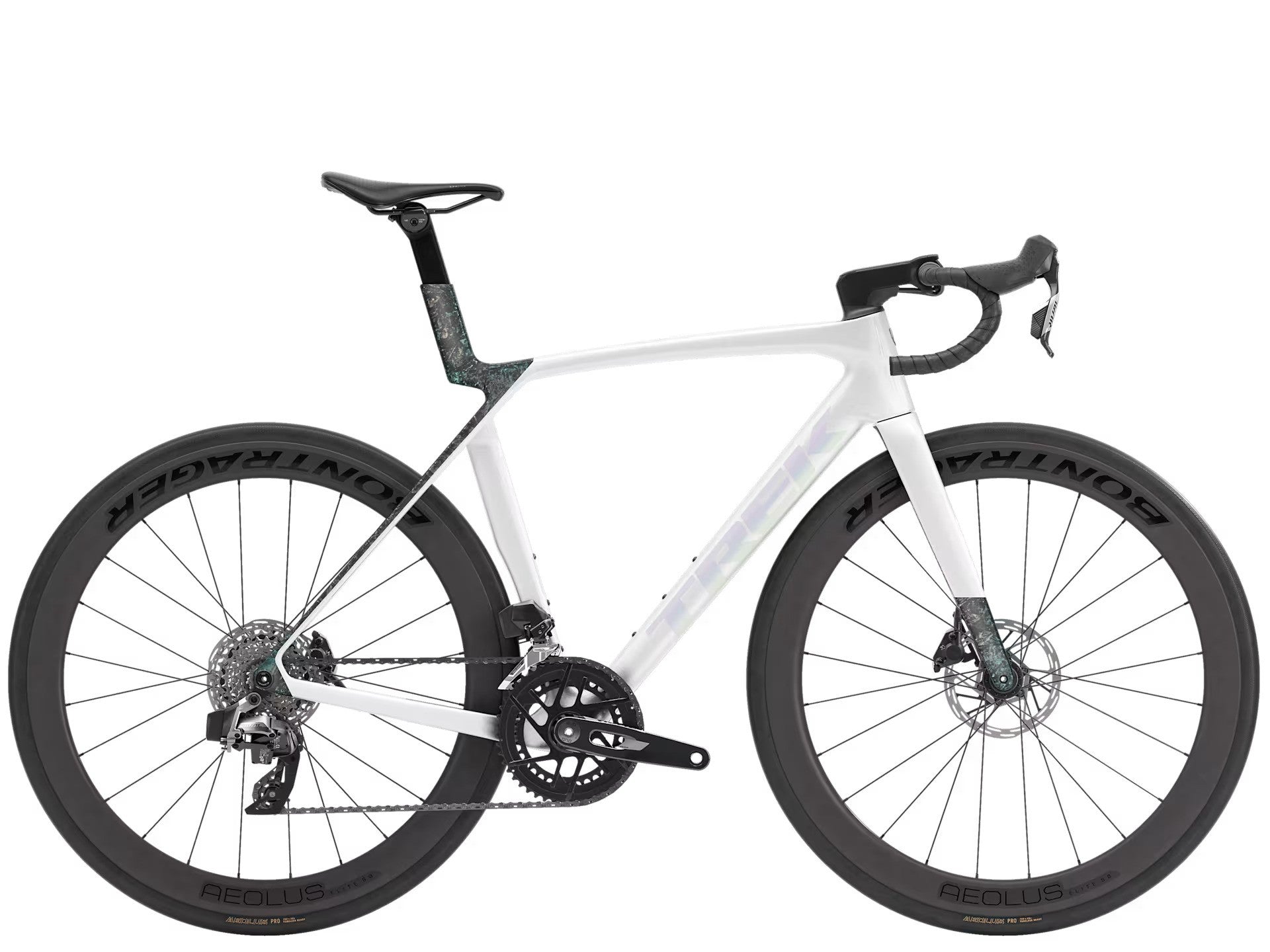

Madone SL 6 AXS Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point with a more economical OCLV 500 Carbon layup than its SLR sibling. A SRAM Rival AXS E1 electronic groupset delivers lightning-fast electronic shifting, and pairs with alloy handlebars to keep the price down. Plus, it's topped off with carbon wheels for extra lightweight performance.
*Please note - spec applies to all sizes unless listed separately
- Frame
-
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
- Fork
-
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
- Weight
- ML - 8.11 kg / 17.88 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
SRAM Rival AXS, 12 speed
- Front derailleur
-
SRAM Rival AXS, braze-on
- Rear derailleur
-
SRAM Rival AXS, 36T max cog
- *Crank
-
Size: XS, S
SRAM Rival AXS, 48/35, DUB, 165mm lengthSize: M, ML
SRAM Rival AXS, 48/35, DUB, 170mm lengthSize: L, XL
SRAM Rival AXS, 48/35, DUB, 172.5mm length - Bottom bracket
- Cassette
- Chain
-
SRAM Rival E1, 12/13 speed
- Max chainring size
- 1x: 54T, 2x: 56/43
- Wheel front
-
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
- Wheel rear
-
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Sram XDR freehub, 142x12mm thru axle
- Skewer front
- Skewer rear
- Tire
-
Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm
- Tire part
-
Bontrager TLR sealant, 6oz
- Rim strip
- Max tire size
- 32mm (as measured, see manual for details)
- Saddle
- Seatpost
- *Handlebar
-
Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width - Handlebar tape
- *Stem
- Brake rotor
-
SRAM Paceline, rounded, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front, 160mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
