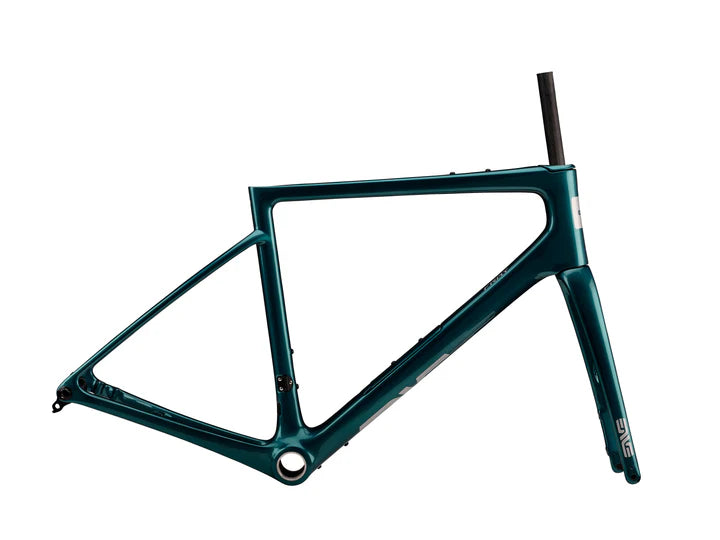

ENVE Fray Frameset

Please specify your desired bar and stem size in the notes during checkout

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is typically sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Real-World Fast™ aero optimization
Geometry optimized for 31mm - 35mm tires
Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
Aero tube shapes & design that complements SES rim shapes
Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
Frame Weight 900g (Size 56cm Painted, No Hardware)

Frame Material	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application	All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43
Frame Size/Fork Rake	47cm/55, 50cm/55, 52cm/51, 54cm/51,
Frame Size/Fork Rake	56cm/47, 58cm/47, 60cm/43
Frame Weight	900g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	27mm
Optimal Tire Size	31mm - 35mm
Maximum Listed Tire Clearance 1x	40mm
Maximum Listed Tire Clearance 2x	38mm
In-Frame Storage	Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing	Internal
Waterbottle Capacity	3
Top Tube Mounts	Yes
Fender Compatible	Yes
Wheel Size	700c

Package	PN	Description
		Frame
		Fork (Rake is Frame Size Dependent)
Installed On Fork	200-2009-008	Front Axle
Installed On Frame	000-0050-951	Rear Axle
Installed On Frame		UDH Rear Derailleur Hanger and Bolt
Installed On Frame	100-5003-014	Front Derailleur Mount
Installed On frame	000-0050-903	M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head)
Installed On Frame	000-0050-946	Fender Mount Set Screws (M5x0.8x10mm)
Installed On Frame	100-5003-904	Chainstay Protector
Installed On Frame	100-5003-904	Disc Brake Rotor Protector
Installed On Frame	100-5006-XXX	Frame Door and Latch (Frame Color Dependent)
Installed On Frame	100-5004-017	Cargo Bay Door Gasket
Installed On Frame	100-5004-904	Cargo Bay Door Hardware
Installed On Frame	100-5004-032	Cargo Bay Latch Anti-Friction Sticker
In Bag	100-5004-906	6mm Cable Routing Hole Plug
		Di2 Wire Cable Grommet
		Blank Cable Grommet
		Shift Housing Cable Grommet
In Bag	100-5003-901	Seatpost Clamp Kit
In Bag	100-5003-015	Headset Kit
In Bag	100-5003-XXX	Top Headset Bearing Cover (Frame Color Dependent)
In Bag	200-0000-032	Fork Compression Plug
In Bag	100-5004-027	Cargo Bay Storage Bags (2)
In Bag	100-5004-028	Cable Management Strap
In Bag		Owner's Manual
In Bag		Torque Wrench (Includes Extra Accessory Bits)
In Bag		Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam)
