Eastern
Eastern Orbit
Eastern Orbit
Regular price
$379.99 USD
Regular price
Sale price
$379.99 USD
Unit price
/
per
Couldn't load pickup availability

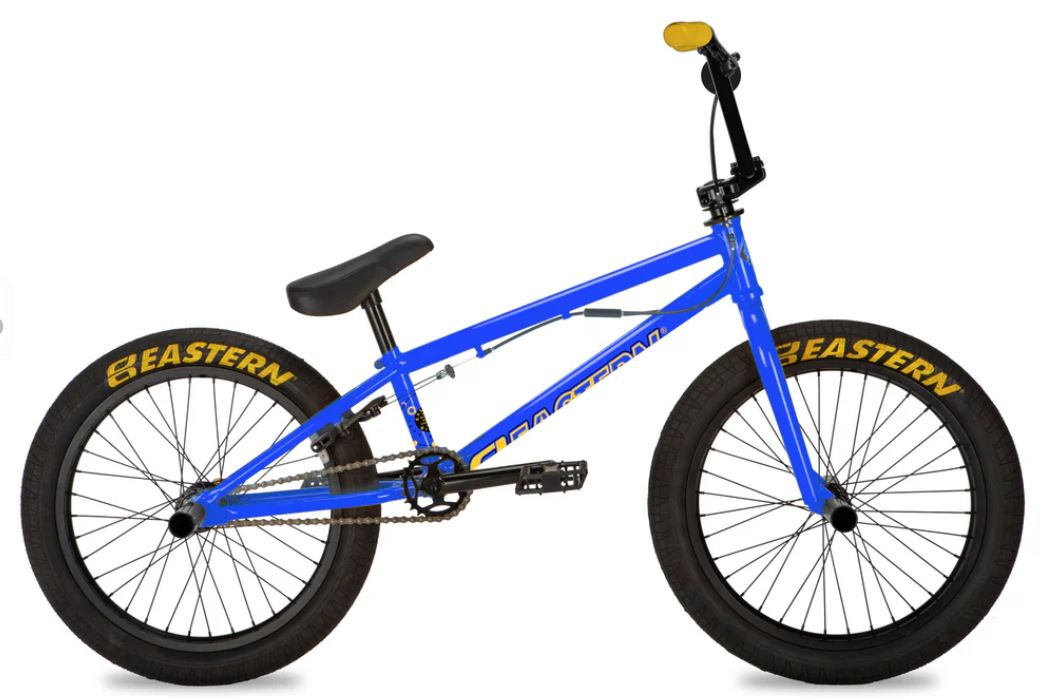

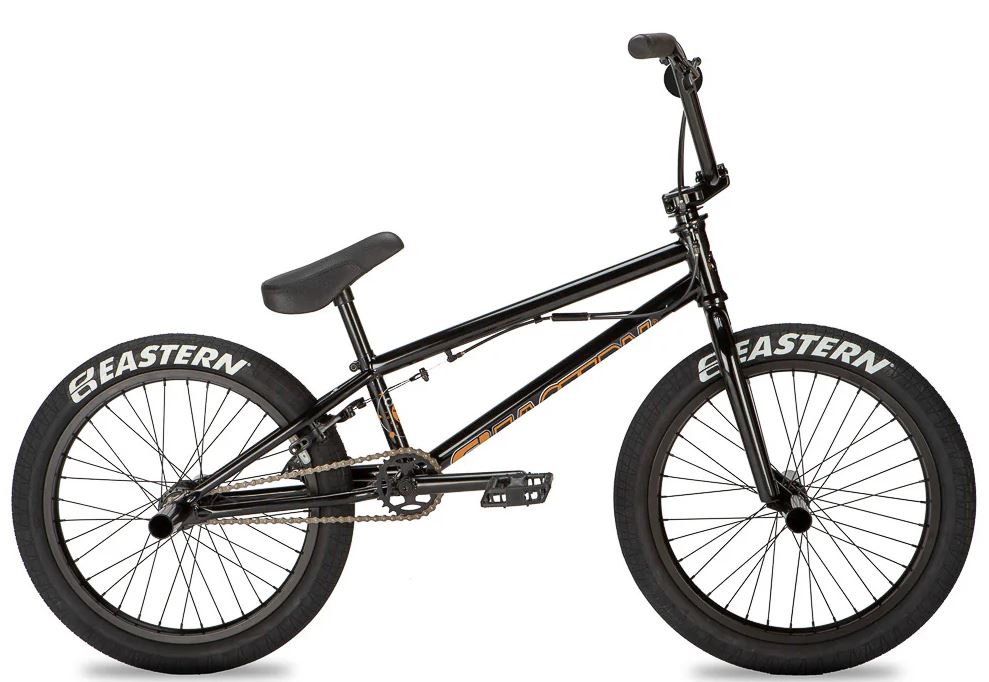

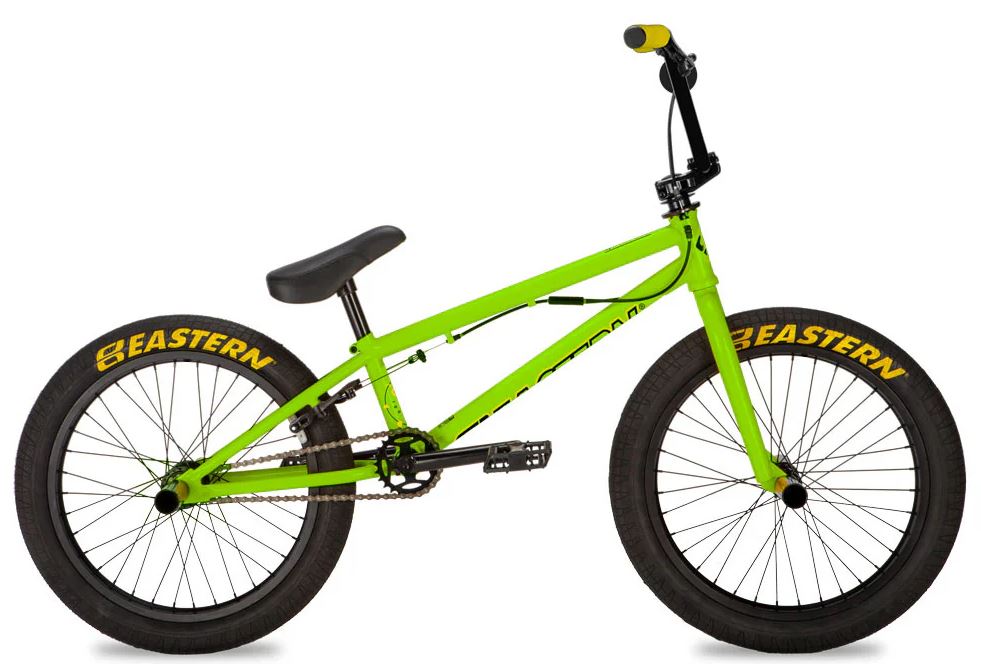

The 20" Orbit is a beginner's BMX bike built with advanced features including a gyro, chromoly down tube, sealed front and rear hubs for a long-lasting smooth ride. Rotor, sealed bearing integrated headset, a 3-piece chromoly cranks, 4 pegs, Eastern grips, pedals, sprocket and tires.
ORBIT 20"
FRAME
Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset Top Tube Size: 20.25″ BB: Mid Headtube: Integrated Chainstay Length: 13.38″ Clamp: Integrated with Frame BARS Hi-Ten 8.5" Upsweep/Backsweep 12⁰/1⁰ FORK Orbit 20”, Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts Fork Rake: 28mmFork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Atom Plastic Pedal with 9/16" Axle
FRONT BRAKE N/A
FRONT LEVER N/A
|
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Grey Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Seat/ Post Combo
POST Comes with seat
FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE 20 x 2.3 *Specs subject to change
REAR TIRE 20 x 2.3 *Specs subject to change
PEG 4 Steel Pegs (2qty 14mm rear/ 2qty 10mm front)
ROTOR Yes
*Specs & pricing subject to change |
