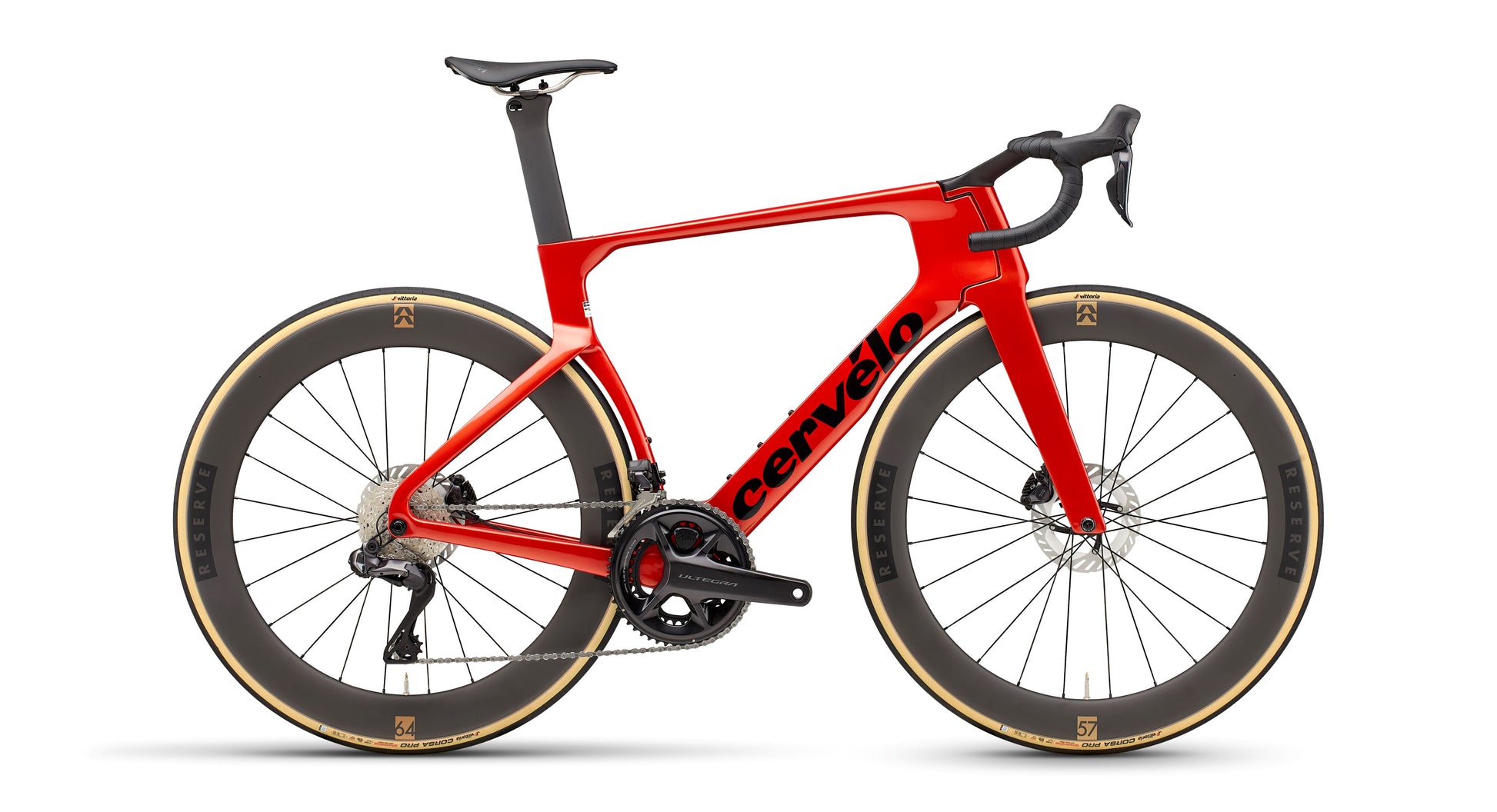

Cervelo S5 Ultegra Di2

PURE SPEED

The S5 is a sport-wide benchmark for speed and aerodynamic
efficiency—with the race results to back it up. From Wout van Aert
winning the Green Jersey by the biggest margin of victory in modern
history, to Simon Yates riding himself into the maglia rosa, S5’s iconic
V-stem and bayonet fork are a fixture at the front of the professional
peloton. The new S5 builds on that legacy of speed by getting even
faster, evolving the front end, and going on a bit of a diet, making it
an even more potent partner for the fastest riders in the world.
The new bike is over 6 Watts faster than its predecessor, 124 grams lighter,
and retains the handling, poise, and stability that riders everywhere
love. The biggest changes are at the front of the bike, where the most
significant aerodynamic performance comes from. The fork legs and
head tube got quite a bit deeper, and the all-new, one-piece handlebar/
stem builds on the original V-stem concept—and gets even faster.
Cervélo and Reserve co-developed the new Reserve 57|64 Turbulent
Aero wheels specifically for use in the S5 frame. The offset of the
wheels perfectly matches the asymmetry of the S5 seat tube,
and they tuck right into the wheel cut outs. This ensures that air
flows smoothly over the entire bike, and Reserve’s Turbulent Aero
approach makes them incredibly stable, even in crosswinds.

Specs

FORK Cervélo All-Carbon, Bayonet S5 Fork
HEADSET FSA IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
FRONT THRU AXLE Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
REAR THRU AXLE Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
FRONT WHEEL Reserve 57TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEEL Reserve 64TA, DT Swiss 240, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
TIRES Vittoria Corsa Pro TLR G2.0 700x29c
CRANKSET Shimano Ultegra, R8100, 52/36T
BOTTOM BRACKET FSA, BBright thread together for 24mm spindle
CHAIN Shimano M8100

FRONT DERAILLEUR Shimano Ultegra, R8150
REAR DERAILLEUR Shimano Ultegra, R8150
CASSETTE Shimano Ultegra, R8100, 11-34T, 12-Speed
SHIFTER/BRAKE Shimano Ultegra, R8170
COCKPIT Cervélo HB19 Carbon
SADDLE Selle Italia NOVUS BOOST EVO SuperFlow Ti
SEATPOST Cervélo SP34 Carbon
BRAKE ROTORS Shimano CL800 Centerlock
POWER METER 4iiii Precision Pro, GEN3+ Dual Sided
SIZES 48, 51, 54, 56, 58
ACCESSORIES Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory
Mount
