Cannondale

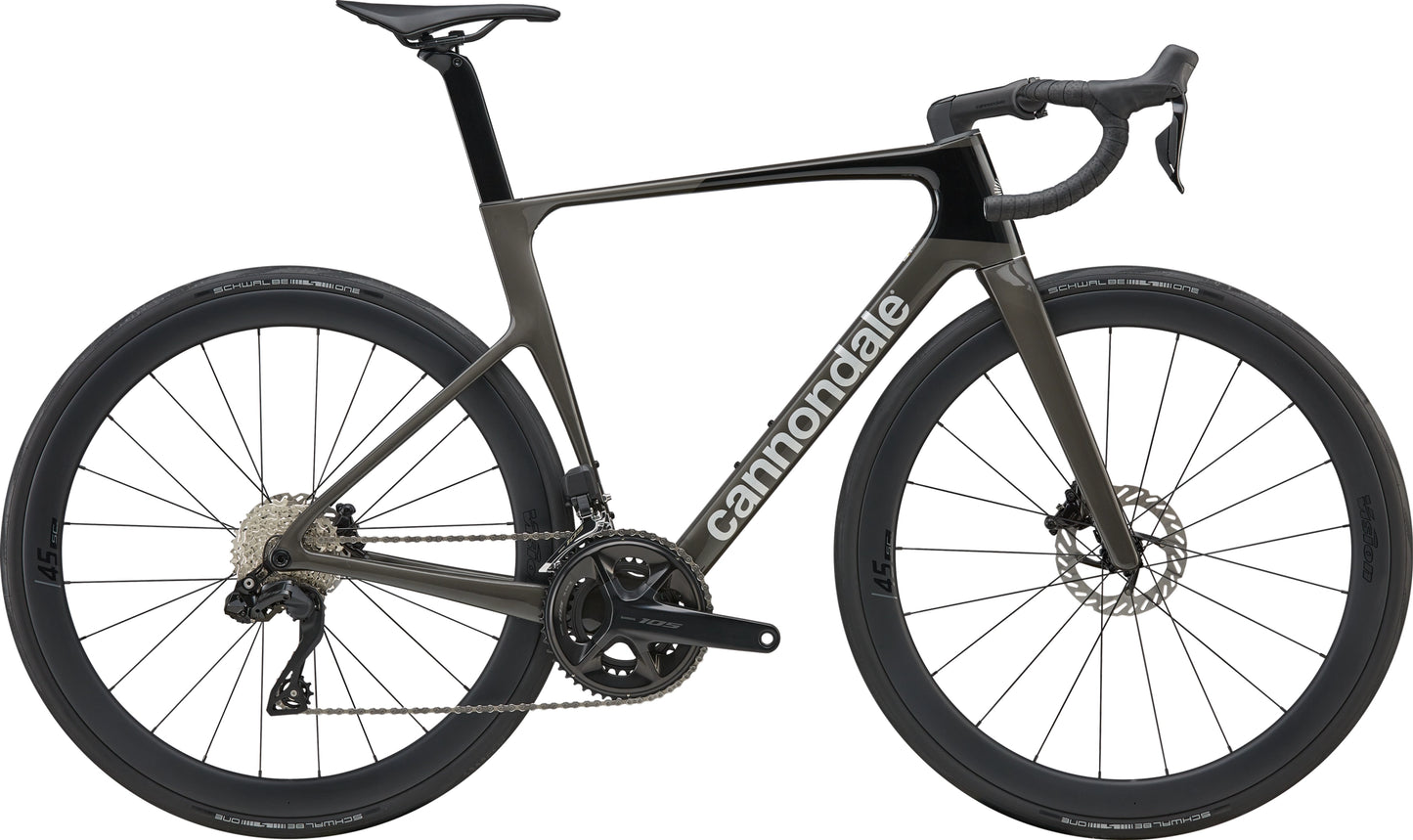

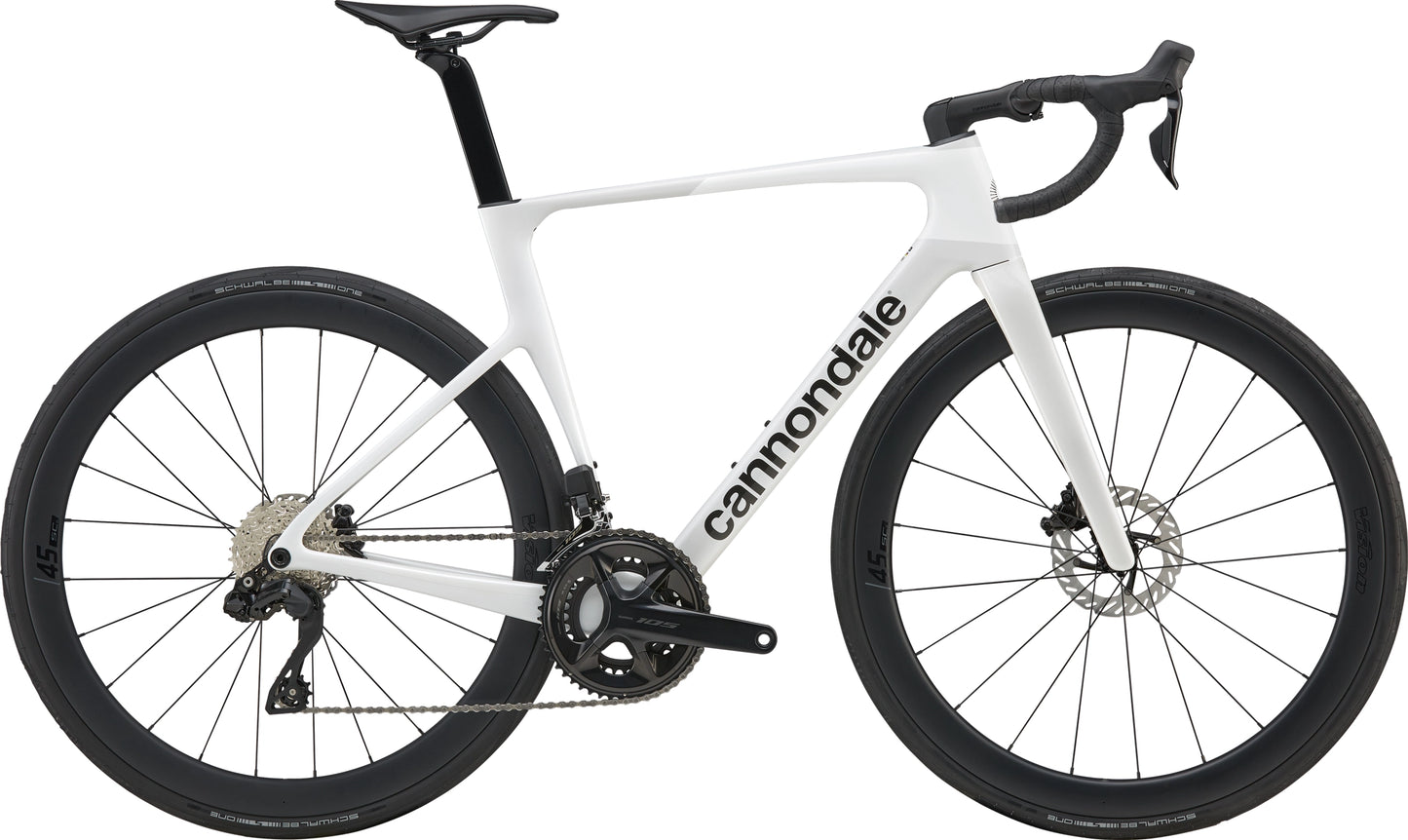

Cannondale SuperSix EVO 5

Cannondale SuperSix EVO 5

$4,999.99 USD
$4,999.99 USD
Sale Sold out
Color: Raw
Size

Faster Everywhere

No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.

Model Description

Electronic precision meets proven race geometry. SuperSix EVO 5 combines the lightweight Gen 5 carbon frame with Shimano’s 105 Di2 electronic shifting and Vision’s racy SC45 carbon wheels. Vision Trimax Aero handlebars with our Conceal stem and Delta steerer keep the front end clean. A composed, stunning, and brilliantly fast platform for riders stepping up their game.

What it's for

Breakaways, KOMs, Podiums, and PRs

Highlights

  • Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
  • Vision SC45 carbon wheelset - 45mm deep, exceptional performance value
  • Shimano 105 Di2 12-speed - Shimano's workhorse high-performance electronic shifting road group

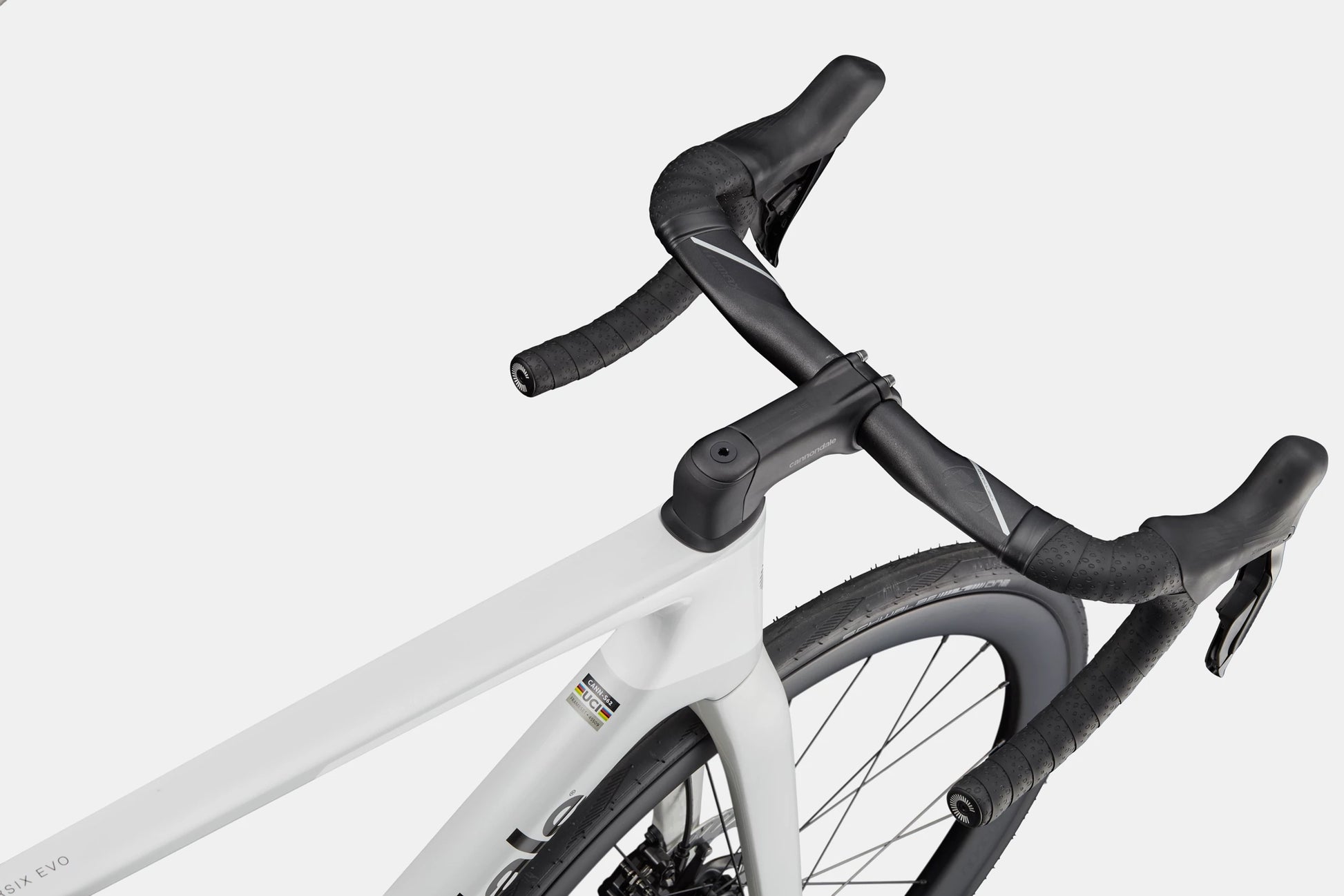

  • Vision Trimax Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
  • Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout

Specs

Details

  • Platform
    SuperSix EVO
  • Model Name
    SuperSix EVO 5
  • Model Code
    C1109GU

Frameset

  • Frame
    SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
  • Fork
    SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
  • Headset
    Integrated, 1-1/8" - 1-1/4"

Drivetrain

  • Rear Derailleur
    Shimano 105 Di2 R7150, 12-speed
  • Front Derailleur
    Shimano 105 Di2 R7170
  • Shifters
    Shimano 105 Di2 R7170, wireless, 2x12-speed
  • Chain
    Shimano 105, 12-speed
  • Crank
    Shimano 105 7100, 50/34: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
  • Rear Cogs
    Shimano 105 R7100, 11-34, 12-speed
  • Bottom Bracket
    Shimano BB-RS500, BSA 68

Brakes

  • Brakes
    Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors
  • Brake Levers
    Shimano 105 Di2 R7170 hydraulic disc

Wheels

  • Rims
    Vision SC45 I23, carbon, 23mm inner width, 45mm depth
  • Spokes
    2:1 aero bladed direct pull
  • Tire Size
    28
  • Wheel Size
    700c
  • Hubs
    Vision, centerlock, (F) 12x100mm, (R) Vision, 12x142mm
  • Tires
    Schwalbe One TLR, 700x28c, tubeless ready

Components

  • Handlebar
    Vision Trimax Aero: 400mm (44-56), 420mm (58-61)
  • Stem
    Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
  • Grips
    Cannondale Bar Tape, 3.5mm
  • Saddle
    Fizik Vento Antares R7, 140mm
  • Seatpost
    Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)

Extra

  • Extra 1
    Tubeless valves, Shimano EC300 charging connector, Conceal Stem accessory mount

**We offer free assembly and tuning for bikes purchased for in-store pickup. Shipped bikes will be delivered partially assembled in the box and require some assembly and tuning.
