BMC Alpenchallenge AL FOUR CUES
BMC Alpenchallenge AL FOUR CUES
Couldn't load pickup availability

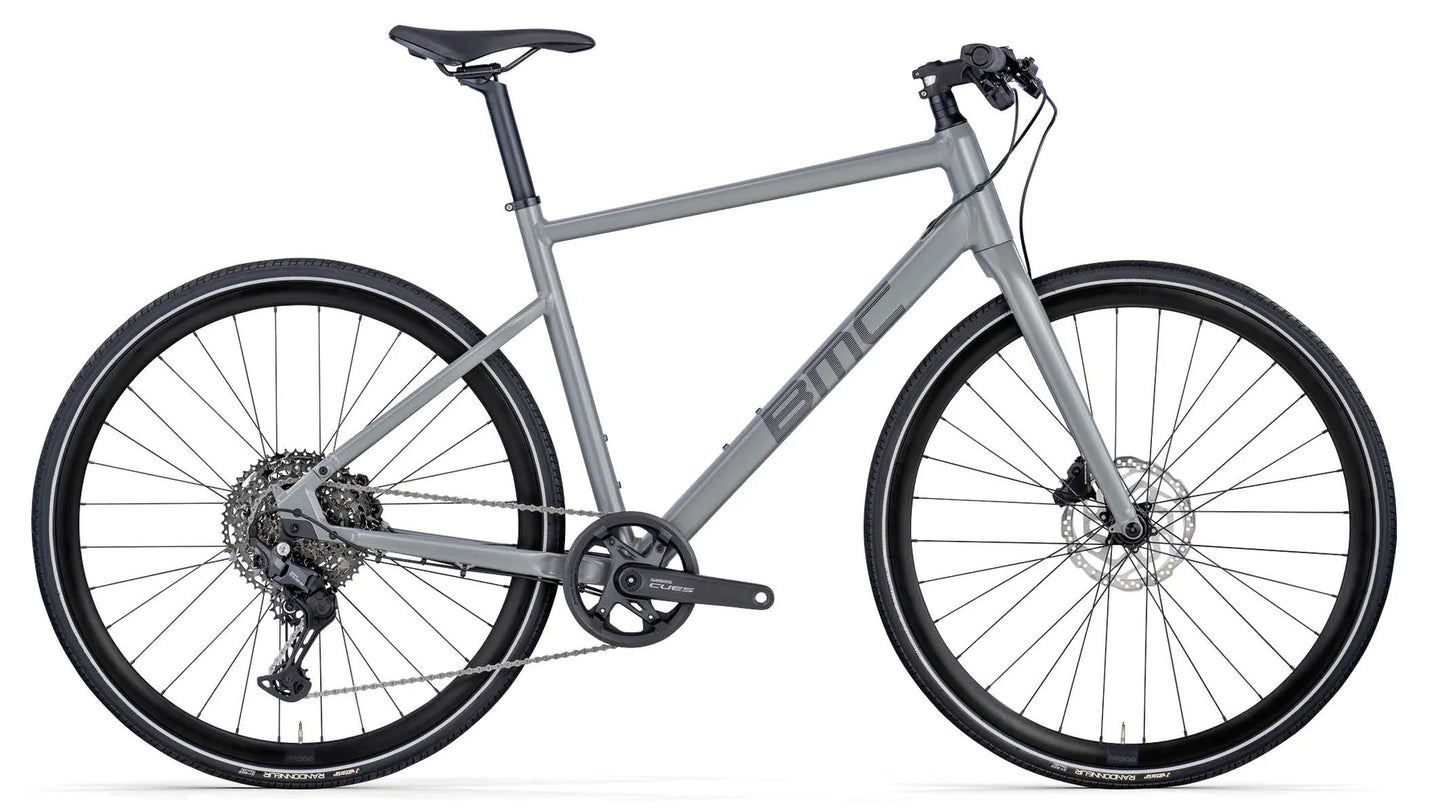

With its classy looks, exacting attention to detail and practical integration, the hybrid bike Alpenchallenge AL could only be from BMC. Its sporty, endurance-inspired, smooth welded, Premium Aluminium frame and fork have fender mounts, and the internally cabled frame is powder coated for durability. Shimano’s 11-speed Cues U6000 drivetrain is paired with an FSA Vero Pro crankset and Shimano MT200 disc brakes, and the wheels are PFR300, with Vittoria Randonneur – 37mm tires.
Frameset
Frame:
Alpenchallenge Premium Aluminium | Smoothwelded | Powder Coat Finish | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Alpenchallenge Premium Aluminium | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC RSM 01
Handlebar:
BMC LSB 03
Seat
Seatpost:
BMC LSP 02
Saddle:
Selle Royal Vivo
Drivetrain
Crankset:
FSA Vero Pro
Chainrings:
40T
Cassette:
SHIMANO CUES (CS-LG400)
Cassette Size:
11-50T
Chain:
SHIMANO CN-LG500 Linkglide
Rear Derailleur:
SHIMANO CUES (RD-U6000)
Shifters:
SHIMANO CUES (SL-U6000)
Gears:
1 x 11
Bottom Bracket:
BSA Threaded Bottom Bracket
Brakes
Brake Levers / Calipers:
SHIMANO BL-MT200 Levers | BR-UR300 Calipers
Rotors:
SHIMANO SM-RT10
Rotor Size (F/R):
180 / 180mm
Wheels
Rims:
PFR300
Hubs (F/R):
CL-712 | RXC-142S
Tires:
Vittoria Randonneur | 37mm
Tubeless Information:
Non-Tubeless Rims | Non-Tubeless Clincher Tire
Additional Information
Tire Clearance:
42mm
ASTM Classification:
Level 2
